Parlec

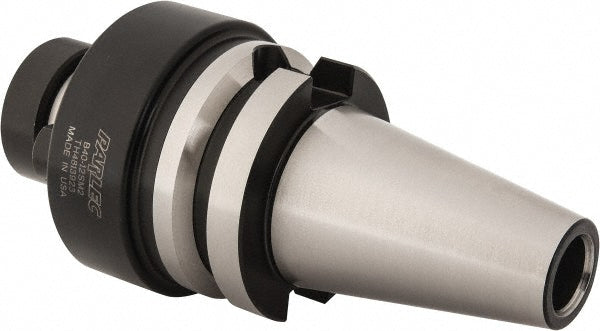

BT40 Shell Mill Holders, Adapter - Parlec B40-12SM2
MFR# B40-12SM2
$186.42List $234.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec B40-12SM2 is a BT40 Shell Mill Holders, Adapter.
Specifications
Additional informationRequires Parlec 12LSC for Coolant Through
Balanced to rpm30000
Coolant typeThrough-Spindle
Lock screw thread size5/8-18
Nose diameter in2-3/4
Pilot diameter in1-1/4
Projection flange to nose end2.2500
Shank typeTaper
Shell mill cutting diameter range in3 to 3-1/2
Taper sizeBT40
Through coolantYes
Tir0.000200
