Parlec

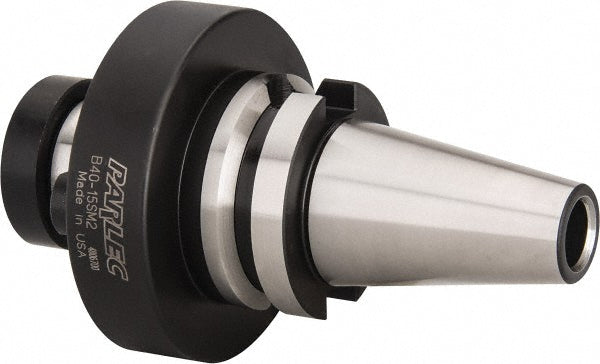

BT40 Shell Mill Holders, Adapter - Parlec B40-15SM2
MFR# B40-15SM2
$200.76List $252.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec B40-15SM2 is a BT40 Shell Mill Holders, Adapter.
Specifications
Additional informationRequires 15LSC for Coolant Through
Balanced to rpm30000
Coolant typeThrough-Spindle
Lock screw thread size3/4-16
Nose diameter in3-3/4
Pilot diameter in1-1/2
Projection flange to nose end2.2500
Shank typeTaper
Shell mill cutting diameter range in4 to 5
Taper sizeBT40
Through coolantYes
Tir0.000200
