Parlec

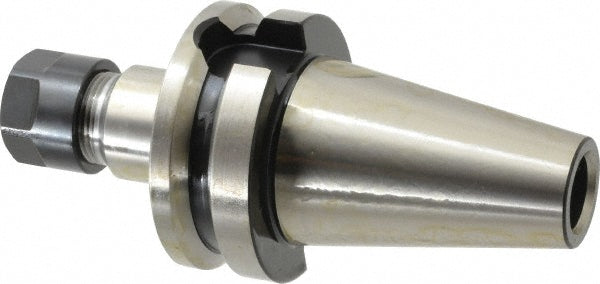

BT40 ER Coolant Collet Collet Chuck - Parlec B40-16ERP312
MFR# B40-16ERP312
$163.91List $205.74
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec B40-16ERP312 is a BT40 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm25000
Collet nut diameter1.1100
Collet seriesER16
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.3937
Minimum collet capacity0.0197
Nose diameter1.1100
Overall length5.7000
Projection3.1200
Shank typeTaper
Taper sizeBT40
Through coolantYes
Tir0.000200
TypeER Coolant Collet
