Parlec

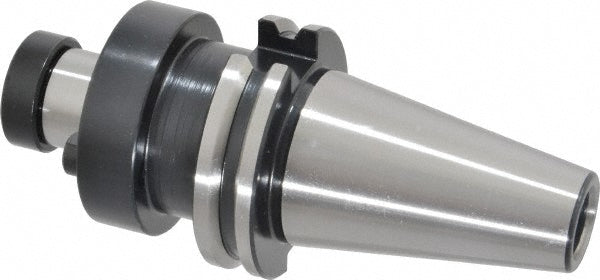

CAT40 Shell Mill Holders, Adapter - Parlec C40-10SM2
MFR# C40-10SM2
$135.43List $170.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-10SM2 is a CAT40 Shell Mill Holders, Adapter.
Specifications
Balanced to rpm30000
Lock screw10LS
Lock screw thread size1/2-20
Nose diameter in2-1/4
Pilot diameter in1
Projection flange to nose end2.0000
Shank typeTaper
Shell mill cutting diameter range in2-1/4 to 2-3/4
Taper sizeCAT40
Through coolantNo
Tir0.000200
