Parlec

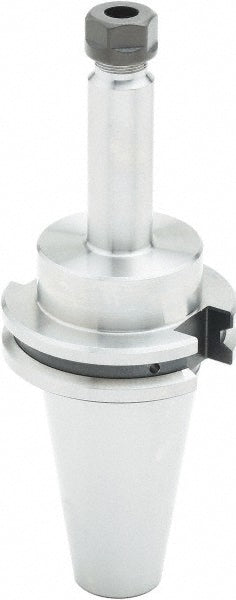

CAT40 ER Coolant Collet Collet Chuck - Parlec C40-11ERF400
MFR# C40-11ERF400
$127.12List $159.57
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-11ERF400 is a CAT40 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm25000
Collet nut diameter0.7500
Collet seriesER11
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.2756
Minimum collet capacity0.0197
Nose diameter in3/4
Overall length6.6900
Projection in4
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000200
TypeER Coolant Collet
