Parlec

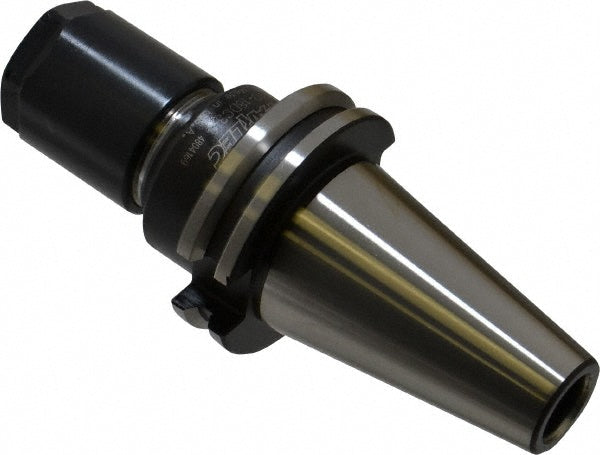

CAT40 Collet Chuck - Parlec C40-18DC3
MFR# C40-18DC3
$148.41List $186.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-18DC3 is a CAT40 Collet Chuck.
Specifications
Collet seriesDA180
Collet systemDouble Angle
Coolant typeThrough-Spindle
Maximum collet capacity in3/4
Minimum collet capacity in1/32
Nose diameter1.4400
Overall length6.0670
Projection3.3800
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000400
