Parlec

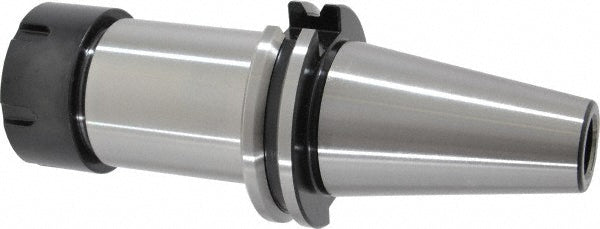

CAT40 ER Coolant Collet Collet Chuck - Parlec C40-32ERP412
MFR# C40-32ERP412
$232.62List $292.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-32ERP412 is a CAT40 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm25000
Collet nut diameter1.9700
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity0.7874
Minimum collet capacity0.0787
Nose diameter1.9700
Overall length8.8100
Projection4.1200
Shank typeTaper
Taper sizeCAT40
Through coolantYes
Tir0.000200
TypeER Coolant Collet
