Parlec

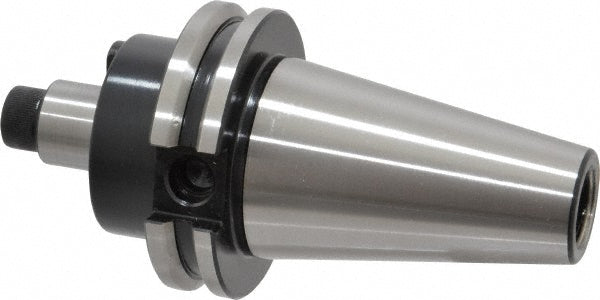

CAT40 Shell Mill Holders, Adapter - Parlec C40-75SM1
MFR# C40-75SM1
$137.83List $170.00
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40-75SM1 is a CAT40 Shell Mill Holders, Adapter.
Specifications
Balanced to rpm30000
Lock screw75LS
Lock screw thread size3/8-24
Nose diameter in1-3/4
Pilot diameter in3/4
Projection flange to nose end1.3800
Shank typeTaper
Shell mill cutting diameter range in1-3/4 to 2
Taper sizeCAT40
Through coolantNo
Tir0.000200
