Parlec

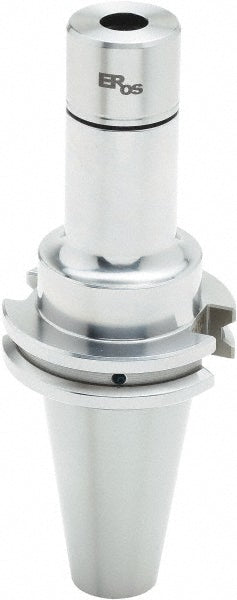

CAT40 Collet Chuck - Parlec C40BC-16EROS250
MFR# C40BC-16EROS250
$235.88List $284.00
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40BC-16EROS250 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm25000
Collet seriesEROS16
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.4060
Maximum rpm20000
Minimum collet capacity0.0400
Nut tightening torque ft lb52.000
Projection in2-1/2
Shank diameter in13/32
Shank typeTaper
Taper sizeCAT40
Through coolantYes
