Parlec
CAT40 Collet Chuck - Parlec C40BC-16EROS400
MFR# C40BC-16EROS400
$272.84List $325.00
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

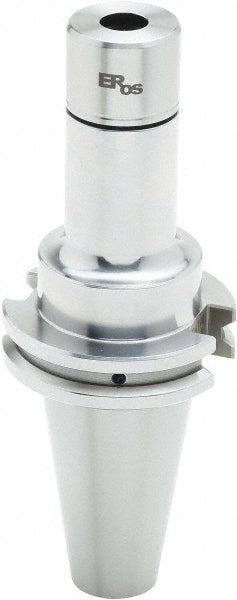

The Parlec C40BC-16EROS400 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm25000
Collet seriesEROS16
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.4060
Maximum rpm20000
Minimum collet capacity0.0400
Nut tightening torque ft lb52.000
Projection in4
Shank diameter in13/32
Shank typeTaper
Taper sizeCAT40
Through coolantYes
