Parlec

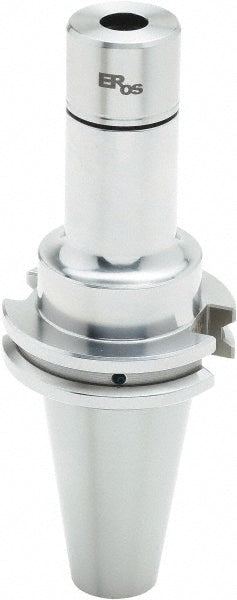

CAT40 Collet Chuck - Parlec C40BC-32EROS400
MFR# C40BC-32EROS400
$281.62List $335.00
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C40BC-32EROS400 is a CAT40 Collet Chuck.
Specifications
Balanced to rpm25000
Collet seriesEROS32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7812
Maximum rpm20000
Minimum collet capacity0.0540
Nut tightening torque ft lb125.000
Projection in4
Shank diameter in25/32
Shank typeTaper
Taper sizeCAT40
Through coolantYes
