Parlec

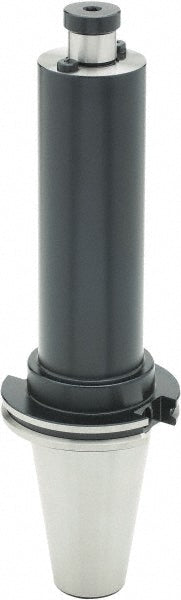

CAT50 Shell Mill Holders, Adapter - Parlec C50-10SM8
MFR# C50-10SM8
$270.07List $339.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C50-10SM8 is a CAT50 Shell Mill Holders, Adapter.
Specifications
Additional informationRequires Parlec 10LSC for Coolant Through
Balanced to rpm8000
Coolant typeThrough-Spindle
Lock screw thread size1/2-20
Modular connection sizePC6
Nose diameter in2-1/4
Pilot diameter in1
Projection flange to nose end in8
Shank diameter in1
Shank typeTaper
Taper sizeCAT50
Through coolantYes
Tir (mm)0.0050
