Parlec

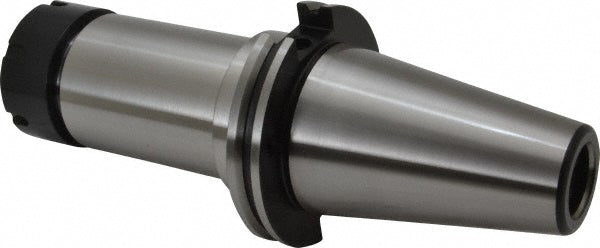

CAT50 ER Coolant Collet Collet Chuck - Parlec C50-40ERP612
MFR# C50-40ERP612
$299.54List $376.00
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Parlec C50-40ERP612 is a CAT50 ER Coolant Collet.
Specifications
Actuator typeWrench
Balanced to rpm20000
Collet nut diameter2.4700
Collet seriesER40
Collet systemER
Coolant typeThrough-Spindle
Maximum collet capacity1.1811
Minimum collet capacity0.1181
Nose diameter2.4700
Overall length10.1200
Projection6.1200
Shank typeTaper
Taper sizeCAT50
Through coolantYes
Tir0.000200
TypeER Coolant Collet
