Phase II

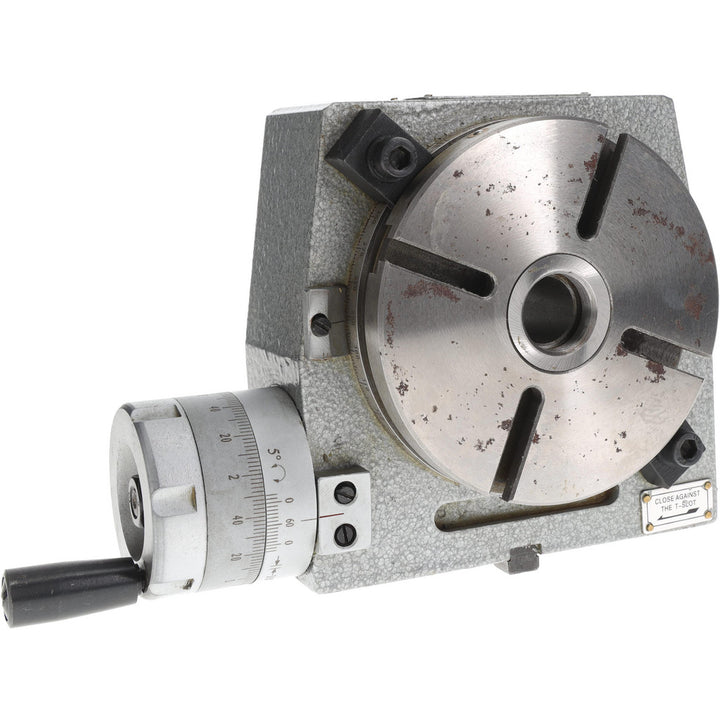

Machining Table - Phase II 221-304
MFR# 221-304
$599.10List $738.95
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Phase II 221-304 is a machining table.
Specifications
Base length (mm)4.9200
Base width1.8900; 1.89in
Centerline height in2.76in
Center bore diameter2.76in
Center hole concentricity8.0E-4in
Center taper2MT
Cross slideNo
Flatness of surface0.0006
Indexing accuracy45s
Overall height in13.43in; 4.92in
Parallelism clamp surface to base0.0008
Setting positionHorizontal; Vertical
Squareness clamp to angle face0.0004
Squareness clamp to center slot0.0008
Table diameter4in
TiltingNo
T slot width0.2360
