Precision Twist Drill

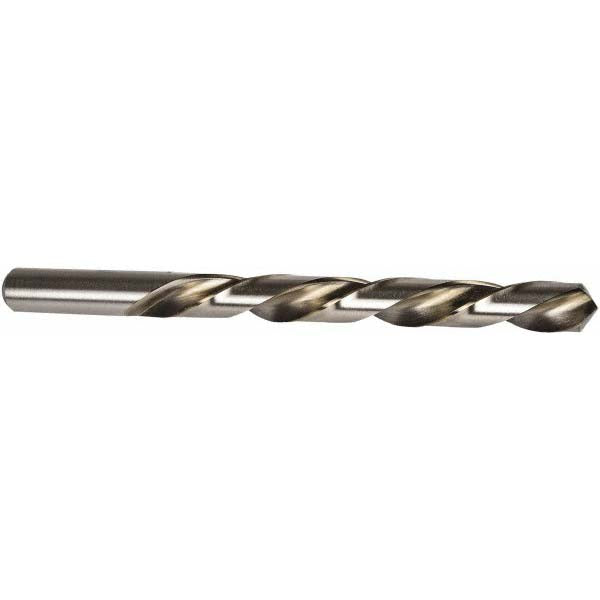

1/4" HSS Drill Bit, 118° point - Precision Twist Drill 5995463
MFR# 5995463Series L10
$12.59List $15.87
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size1/4
Flutes2
Description
The Precision Twist Drill 5995463 is a 1/4" HSS drill bit, 118° point. Suited for steel, cast iron. 2-3/4 flute length, 4 overall length. Series L10.
Specifications
Coolant throughNo
Cutting directionLeft Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in1/4
Drill bit size letterE
Drill bit size range0.2500 - 0.3000
Drill point angle degrees118
Flute by diameter ratio11xD
Flute length in2-3/4
Flute typeRegular Spiral
Maximum drilling depth in2-3/4
Number of flats0
Number of flutes2
Overall length in4
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter in1/4
Shank length in1-1/4
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
