Precision Twist Drill
11/64" HSS Drill Bit, 118° point - Precision Twist Drill 5995466
MFR# 5995466Series L10
$8.43List $10.62
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/64
Flutes2
Description

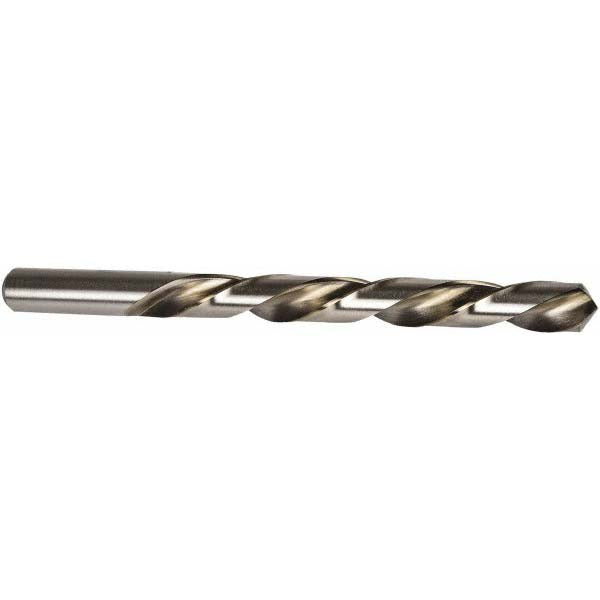

The Precision Twist Drill 5995466 is a 11/64" HSS drill bit, 118° point. Suited for steel, cast iron. 2-1/8 flute length, 3-1/4 overall length. Series L10.
Specifications
Coolant throughNo
Cutting directionLeft Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHSS
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-1/8
Flute typeRegular Spiral
Maximum drilling depth in2-1/8
Number of flats0
Number of flutes2
Overall length in3-1/4
Point typeStandard
Primary workpiece materialSteel; Cast Iron
Shank diameter in11/64
Shank length in1-1/8
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
