Precision Twist Drill

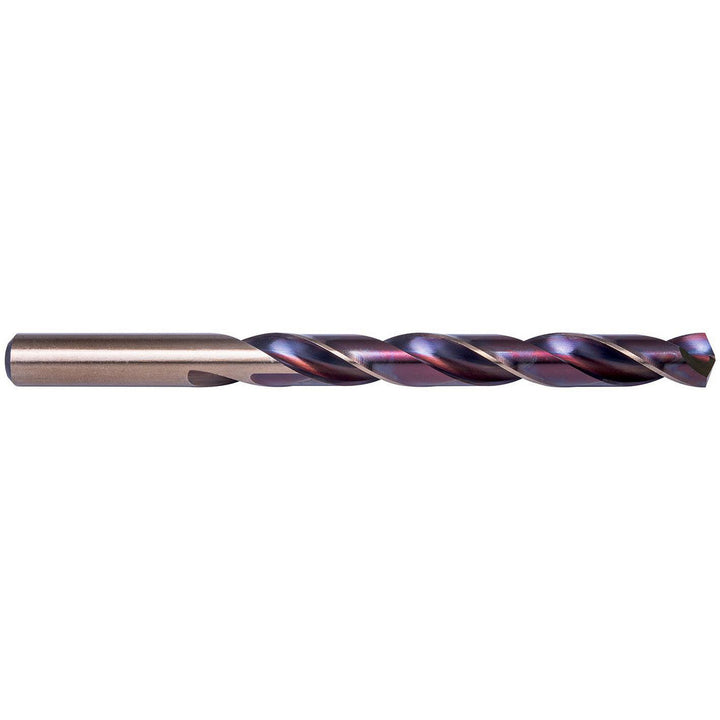

#46 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995903
MFR# 5995903Series HX10-HX15-HX18
$2.14List $2.70
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingBronze
Description
The Precision Twist Drill 5995903 is a #46 High Speed Steel drill bit with a Bronze finish, 135° point. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/8 flute length, 2-1/8 overall length. Series HX10-HX15-HX18.
Specifications
Coating finishBronze
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.0810
Drill bit size range0.0500 - 0.1000
Drill bit size wire#46
Drill point angle degrees135
Flute by diameter ratio14xD
Flute length in1-1/8
Flute typeSpiral
Maximum drilling depth in1-1/8
Number of flats0
Number of flutes2
Overall length in2-1/8
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter0.0810
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
