Precision Twist Drill

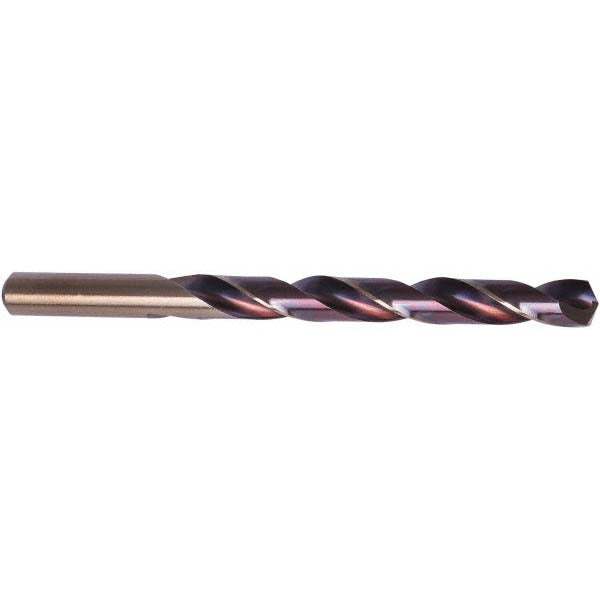

#10 HSS Drill Bit, Straw, 135° point - Precision Twist Drill 5995926
MFR# 5995926Series HX10-HX15-HX18
$3.59List $4.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Precision Twist Drill 5995926 is a #10 HSS drill bit with a Straw finish, 135° point. Suited for high-temp alloy. 2-7/16 flute length, 3-5/8 overall length. Series HX10-HX15-HX18.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHSS
Drill bit size0.1935
Drill bit size range0.1500 - 0.2000
Drill bit size wire#10
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in2-7/16
Flute typeRegular Spiral
Maximum drilling depth in2-7/16
Number of flats0
Number of flutes2
Overall length in3-5/8
Point typeStandard
Primary workpiece materialHigh-Temp Alloy
Shank diameter0.1935
Shank length in1-3/16
Shank typeStraight
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
