Precision Twist Drill

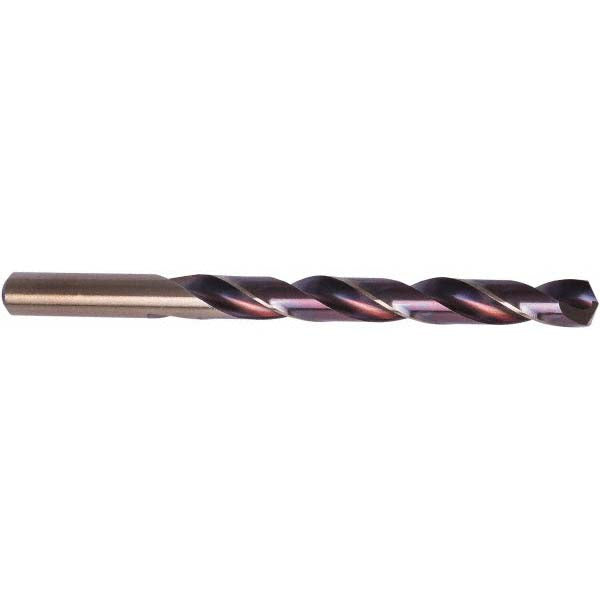

#12 High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5995930
MFR# 5995930Series HX10-HX15-HX18
$3.86List $4.86
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingBronze
Description
The Precision Twist Drill 5995930 is a #12 High Speed Steel drill bit with a Bronze finish, 135° point. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2-5/16 flute length, 3-1/2in overall length. Series HX10-HX15-HX18.
Specifications
Coating finishBronze
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size0.1890
Drill bit size range0.1500 - 0.2000
Drill bit size wire#12
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-5/16
Flute typeSpiral
Material gradeM2
Maximum drilling depth in2-5/16
Number of flats0
Number of flutes2
Overall length in3-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter0.1890
Shank length in1-3/16in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
