23/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5995946

Precision Twist Drill

23/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5995946

MFR# 5995946Series M40CO

$13.22List $16.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size23/64
CoatingCoated

Description

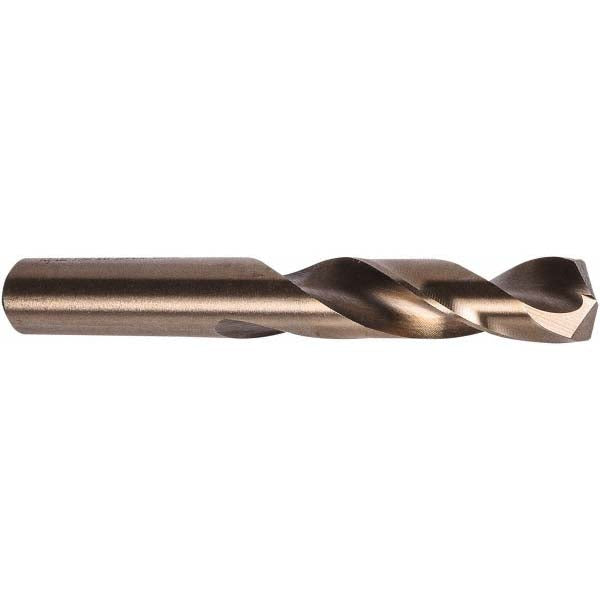

The Precision Twist Drill 5995946 is a 23/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-3/4 flute length, 3-1/16 overall length. Series M40CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-3/4
Flute typeSpiral
Material gradeM40
Overall length in3-1/16
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
