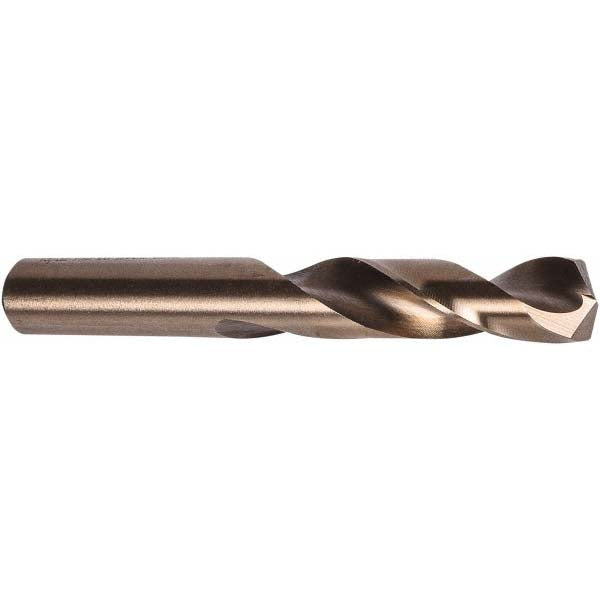

31/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5995964

Precision Twist Drill

31/64" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5995964

MFR# 5995964Series M40CO

$21.35List $27.38 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size31/64
CoatingCoated

Description

The Precision Twist Drill 5995964 is a 31/64" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 2-3/16 flute length, 3-11/16 overall length. Series M40CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in31/64
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in2-3/16
Flute typeSpiral
Material gradeM40
Overall length in3-11/16
Point typeSplit
Primary workpiece materialHard Material
Shank diameter0.4844
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
