7/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996002

Precision Twist Drill

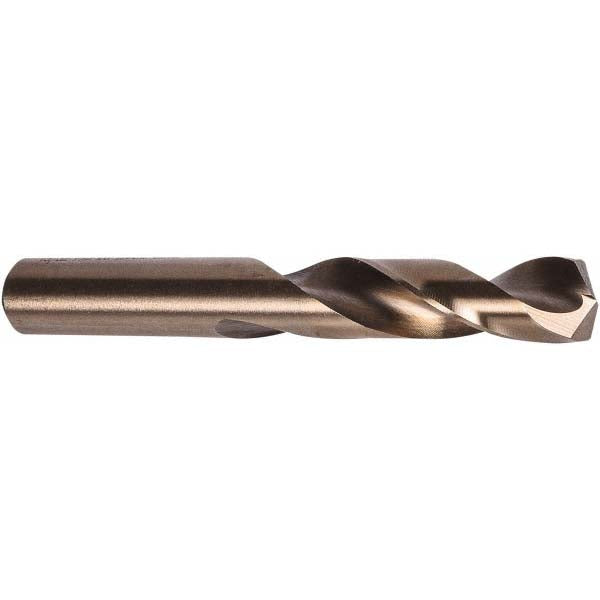

7/32" Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996002

MFR# 5996002Series M40CO

$5.41List $6.94 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
CoatingCoated

Description

The Precision Twist Drill 5996002 is a 7/32" Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-1/4 flute length, 2-3/8 overall length. Series M40CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-1/4
Flute typeSpiral
Material gradeM40
Overall length in2-3/8
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
