#60 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996169

Precision Twist Drill

#60 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996169

MFR# 5996169Series M41CO

$2.80List $3.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingCoated

Description

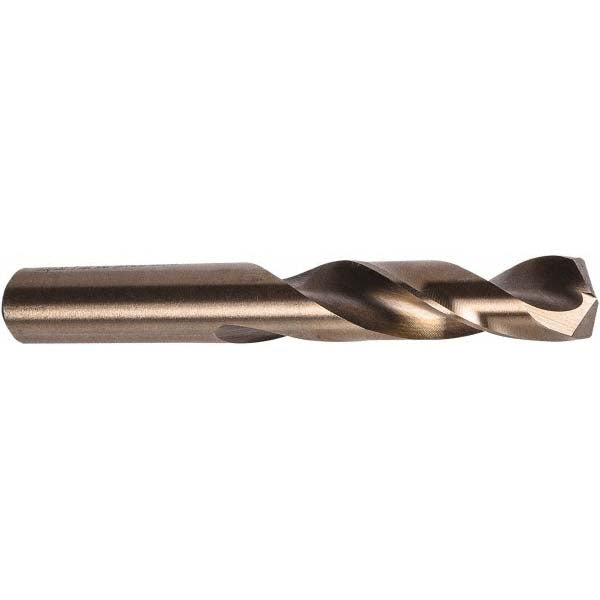

The Precision Twist Drill 5996169 is a #60 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1/2 flute length, 1-3/8 overall length. Series M41CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.0400
Drill bit size wire#60
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1/2
Flute typeSpiral
Material gradeM41
Overall length in1-3/8
Point typeStandard
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
