Precision Twist Drill

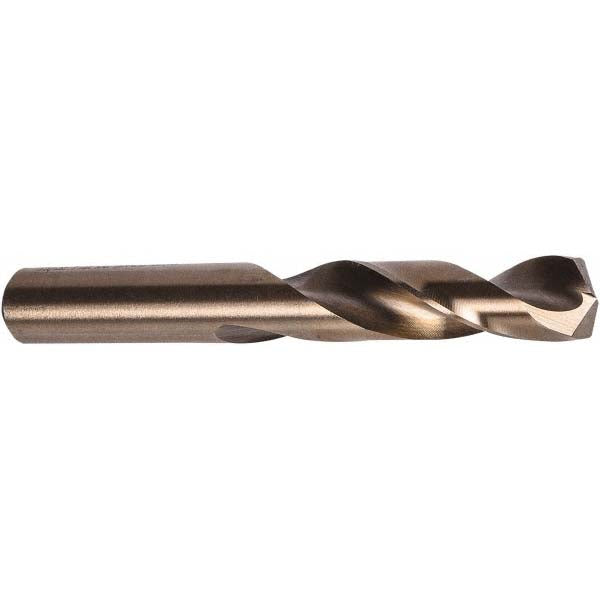

#7 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996172
MFR# 5996172Series M41CO
$5.03List $6.34
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Precision Twist Drill 5996172 is a #7 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-3/16 flute length, 2-1/4 overall length. Series M41CO.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.2010
Drill bit size range0.2000 to 0.2500
Drill bit size wire#7
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-3/16
Flute typeSpiral
Material gradeM41
Overall length in2-1/4
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
