Precision Twist Drill

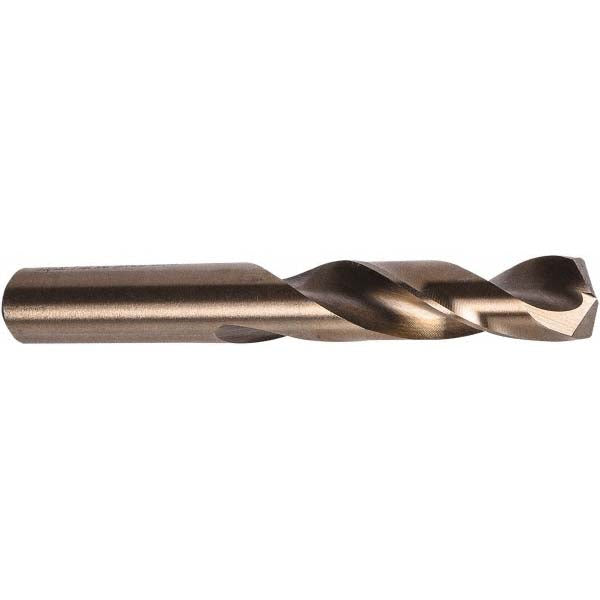

#25 Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996188
MFR# 5996188Series M41CO
$3.23List $4.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingCoated
Description
The Precision Twist Drill 5996188 is a #25 Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1 flute length, 2-1/16 overall length. Series M41CO.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill bit size wire#25
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1
Flute typeSpiral
Material gradeM41
Overall length in2-1/16
Point typeSplit
Primary workpiece materialHard Material
Shank diameter0.1495
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
