Precision Twist Drill

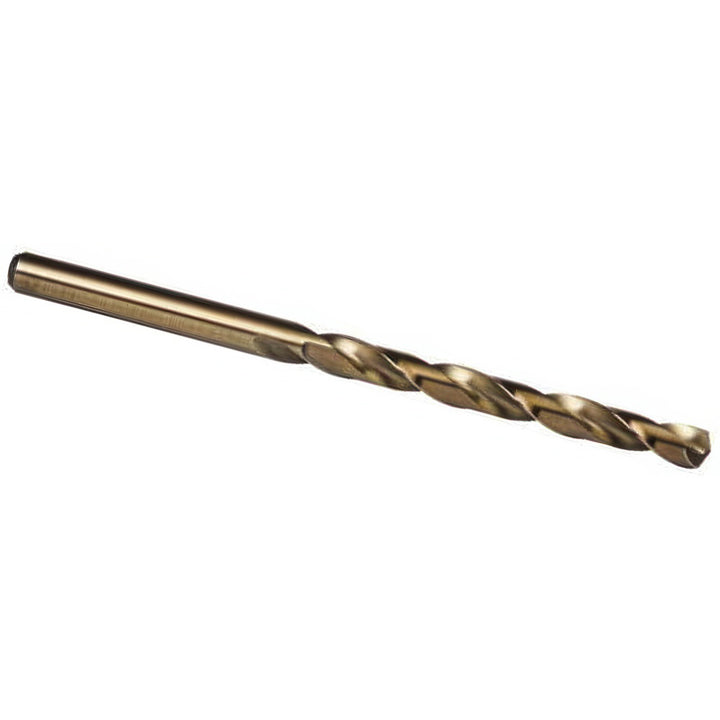

35/64" Cobalt Drill Bit, Coated, 135° point - Precision Twist Drill 5996284
MFR# 5996284Series M51CO
$68.18List $87.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size35/64
CoatingCoated
Description
The Precision Twist Drill 5996284 is a 35/64" Cobalt drill bit with a Coated finish, 135° point. 4-7/8 flute length. Series M51CO.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy-Duty
Drill bit size in35/64
Drill point angle degrees135
Flute length in4-7/8
Flute length x diameter ratio6xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic Materials; Stainless Steel
Overall length8-1/4
Point typeNotched
Shank diameter0.5469
Shank typeStraight
Spiral typeRegular
StandardsANSI
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
