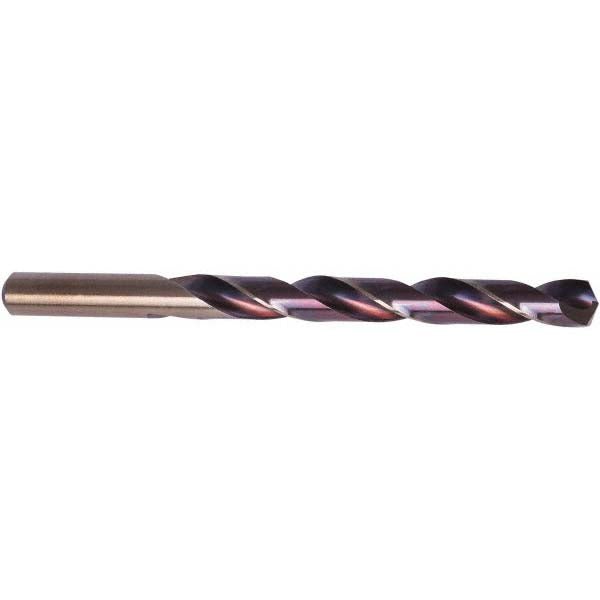

11/64" High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5996397

Precision Twist Drill

11/64" High Speed Steel Drill Bit, Bronze, 135° point - Precision Twist Drill 5996397

MFR# 5996397Series HX10-HX15-HX18

$2.48List $3.13 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 12 — minimum order 12

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingBronze

Description

The Precision Twist Drill 5996397 is a 11/64" High Speed Steel drill bit with a Bronze finish, 135° point. Suited for steel, stainless steel, cast iron, superalloys & titanium. 2-1/8 flute length, 3-1/4in overall length. Series HX10-HX15-HX18.

Specifications

Coating finishBronze
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit materialHigh Speed Steel
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-1/8
Flute typeSpiral
Material gradeM2
Maximum drilling depth in2-1/8
Number of flats0
Number of flutes2
Overall length in3-1/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Shank diameter in11/64in
Shank length in1-1/8in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
