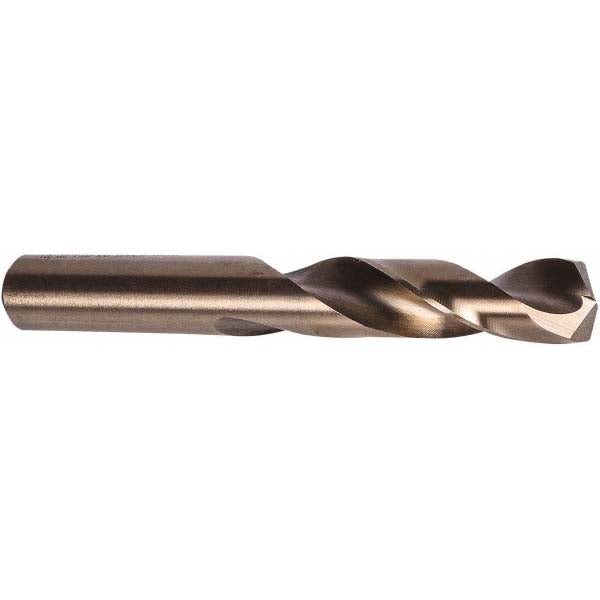

Letter O Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996512

Precision Twist Drill

Letter O Cobalt Screw Machine Drill Bit, Coated, 135° point - Precision Twist Drill 5996512

MFR# 5996512Series M42CO

$11.91List $15.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
CoatingCoated

Description

The Precision Twist Drill 5996512 is a Letter O Cobalt Screw Machine drill bit with a Coated finish, 135° point. Suited for hard material. 1-11/16 flute length, 2-15/16 overall length. Series M42CO.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy Duty
Drill bit size0.3160
Drill bit size letterO
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle135
Flute by diameter ratio2.5xD
Flute length in1-11/16
Flute typeSpiral
Material gradeM42
Overall length in2-15/16
Point typeSplit
Primary workpiece materialHard Material
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
