Precision Twist Drill

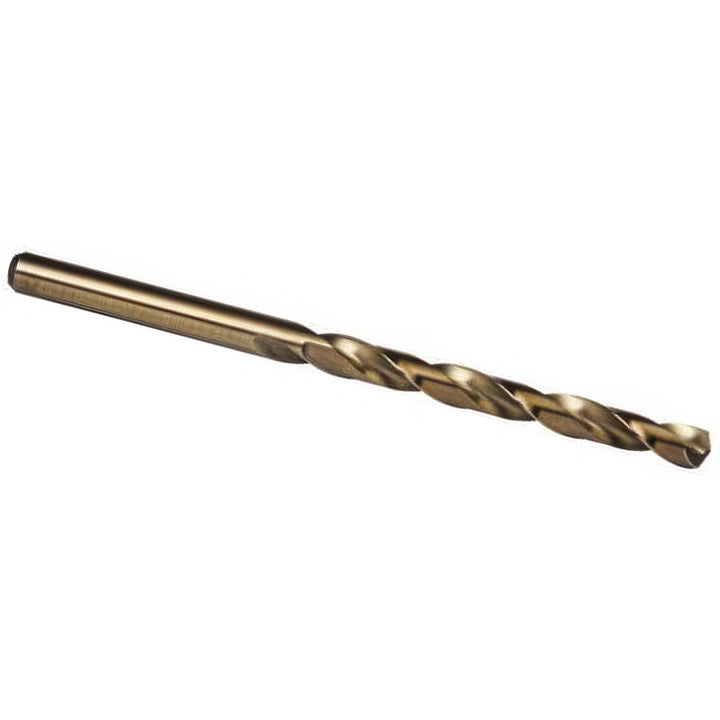

17/64" Cobalt Drill Bit, Gold, 135° point - Precision Twist Drill 5996618
MFR# 5996618Series M51CO
$27.40List $34.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
CoatingGold
Description
The Precision Twist Drill 5996618 is a 17/64" Cobalt drill bit with a Gold finish, 135° point. 3-7/8 flute length. Series M51CO.
Specifications
Coating finishGold
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy-Duty
Drill bit size in17/64
Drill point angle degrees135
Flute length in3-7/8
Flute length x diameter ratio6xD
Flute typeSpiral
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Cermet; Copper; Graphite; Hardened Steel; High-Strength Bronze; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Nickel Alloy; Reinforced Plastic; Stainless Steel; Steel; Te
Overall length6-1/4in
Point typeSplit
Shank diameter0.2656
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsANSI
Threaded shankNo
Tool applicationSelf-Centering
Tool materialCobalt
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
