Precision Twist Drill

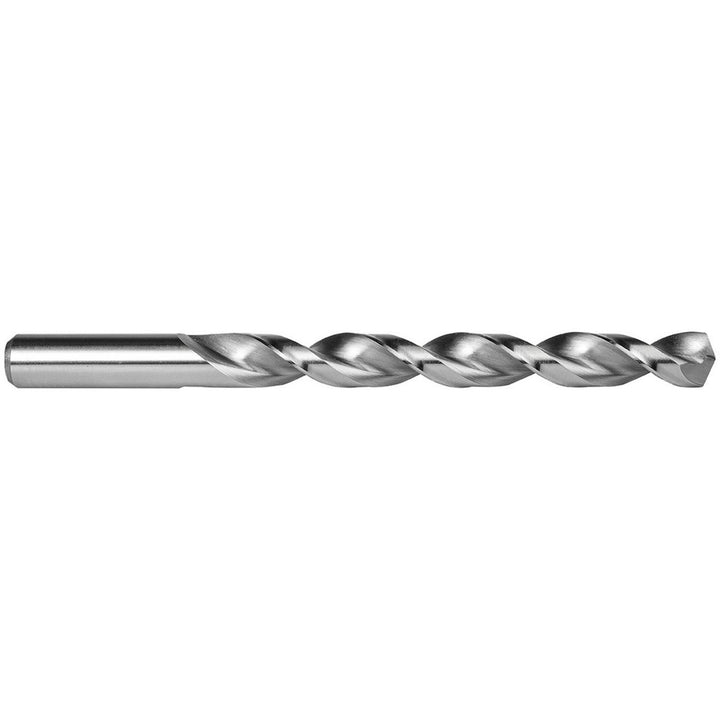

0.3228" High Speed Steel Drill Bit, 135° point - Precision Twist Drill 5996931
MFR# 5996931Series QC21PM
$13.12List $16.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Precision Twist Drill 5996931 is a 0.3228" High Speed Steel drill bit, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-61/64 flute length, 4-39/64 overall length. Series QC21PM.
Specifications
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size0.3228
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute by diameter ratio9xD
Flute length in2-61/64
Flute typeSpiral
Maximum drilling depth in2-61/64
Number of flats0
Number of flutes2
Overall length in4-39/64
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.3228
Shank length1.6535
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
Spiral typeRegular
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
