#2 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997709

Precision Twist Drill

#2 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997709

MFR# 5997709Series R10CO-R15CO-R18CO

$7.29List $9.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

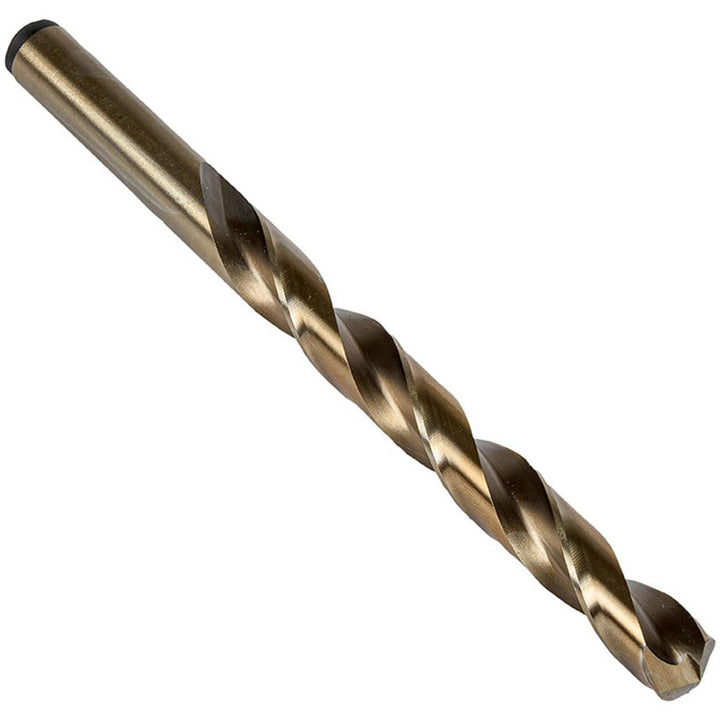

The Precision Twist Drill 5997709 is a #2 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-5/8 flute length, 3-7/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2210
Drill bit size range0.2000 - 0.2500
Drill bit size wire#2
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-5/8
Flute typeRegular Spiral
Maximum drilling depth in2-5/8
Number of flats0
Number of flutes2
Overall length in3-7/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.2210
Shank length in1-1/4
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
