Precision Twist Drill

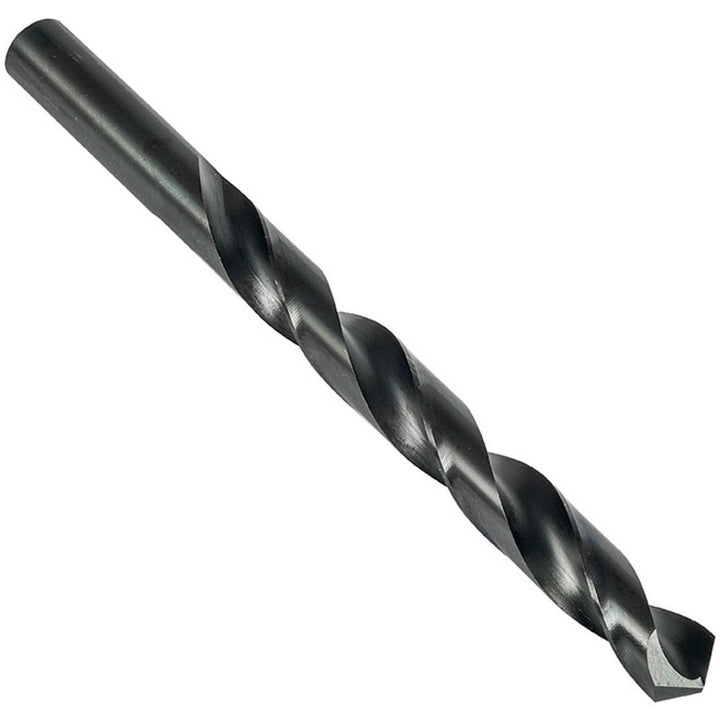

5/64" High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5997778
MFR# 5997778Series R10B-R15B-R18B
$2.28List $2.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/64
Flutes2
CoatingSteam Oxide
Description
The Precision Twist Drill 5997778 is a 5/64" High Speed Steel drill bit with a Steam Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 1 flute length, 2in overall length. Series R10B-R15B-R18B.
Specifications
Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in5/64
Drill bit size range0.0500 - 0.1000
Drill bit size wire#47
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in1
Flute typeSpiral
Maximum drilling depth in1
Number of flats0
Number of flutes2
Overall length in2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in5/64in
Shank length in1
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
