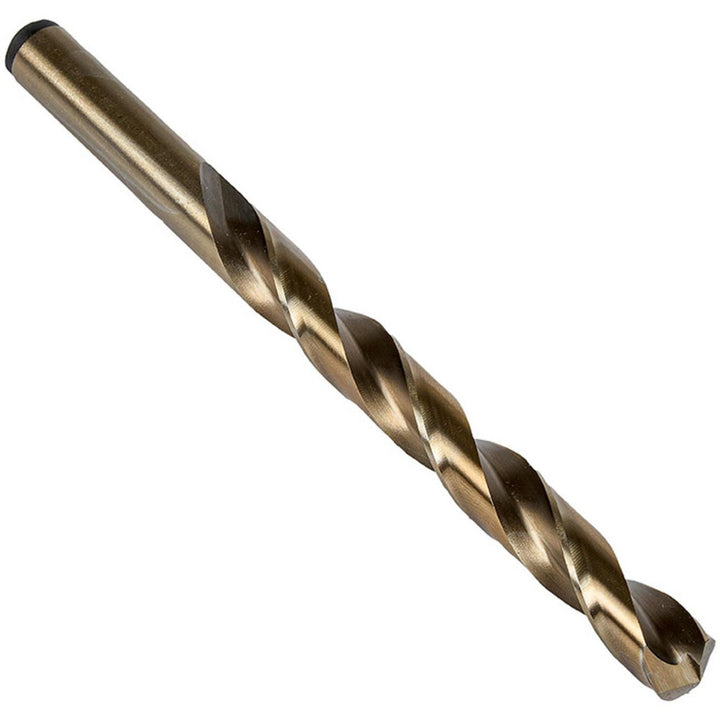

#74 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997825

Precision Twist Drill

#74 Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5997825

MFR# 5997825Series R10CO-R15CO-R18CO

$4.61List $5.91 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

The Precision Twist Drill 5997825 is a #74 Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 1/4 flute length, 1 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.0225
Drill bit size range0.0000 - 0.0500
Drill bit size wire#74
Drill point angle degrees135
Flute by diameter ratio11xD
Flute length in1/4
Flute typeRegular Spiral
Maximum drilling depth in1/4
Number of flats0
Number of flutes2
Overall length in1
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.0225
Shank length in3/4
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
