Precision Twist Drill

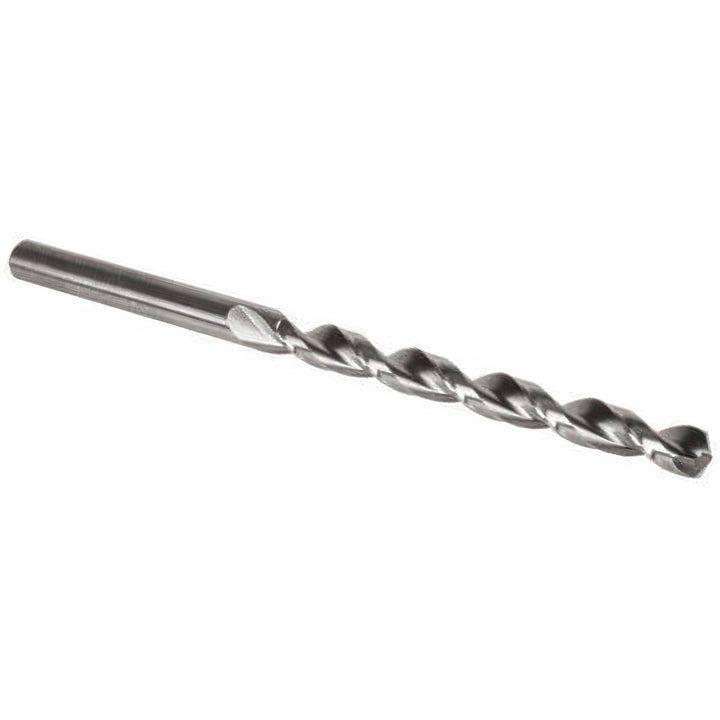

0.3150" High Speed Steel Drill Bit, 135° point - Precision Twist Drill 5997941
MFR# 5997941Series QC91PM
$27.78List $35.01
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 5997941 is a 0.3150" High Speed Steel drill bit, 135° point. 4-19/64 flute length. Series QC91PM.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHeavy-Duty
Drill bit size0.3150
Drill point angle degrees135
Flute length in4-19/64
Flute length x diameter ratio6xD
Flute typeParabolic
Material applicationAlloy Steel; Aluminum; Aluminum Alloy; Brass; Bronze; Carbon Steel; Cast Iron; Copper; Graphite; Hardened Steel; Magnesium; Magnesium Alloy; Malleable Iron; Nickel; Stainless Steel; Steel; Tempered Steel; Titanium; Titanium Alloy
Overall length6-1/2
Point typeSplit
Shank diameter0.3150
Shank length (mm)56.00
Shank typeStraight
Specification numberDIN 340
StandardsDIN 340
Threaded shankNo
Tool applicationSelf-Centering
Tool materialHigh Speed Steel
Tool performanceHigh
Web configurationTapered
Web thinningWeb-Thinned
