#69 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5998097

Precision Twist Drill

#69 High Speed Steel Drill Bit, 118° point - Precision Twist Drill 5998097

MFR# 5998097Series R10H-R18H

$3.13List $4.01 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2

Description

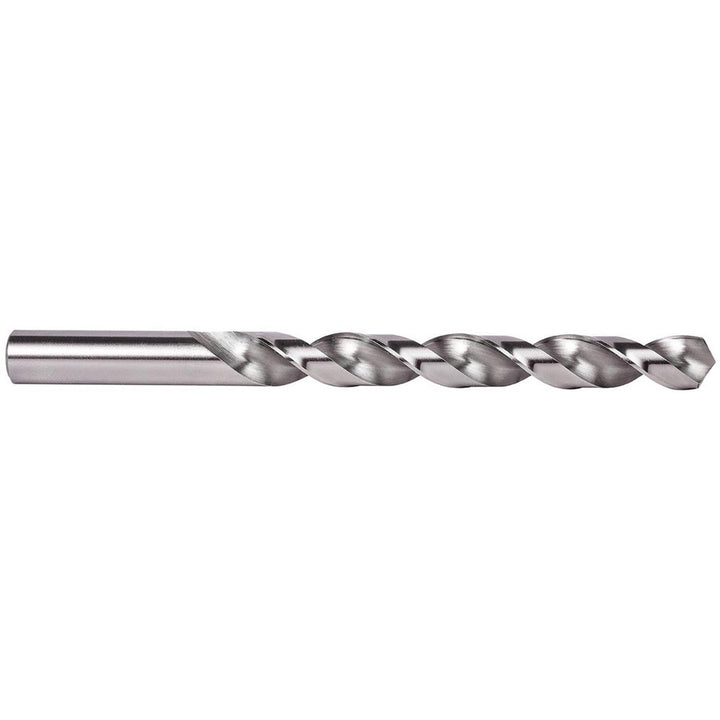

The Precision Twist Drill 5998097 is a #69 High Speed Steel drill bit, 118° point. Suited for steel, cast iron, non-ferrous metal, superalloys & titanium. 1/2 flute length, 1-3/8in overall length. Series R10H-R18H.

Specifications

Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0292
Drill bit size range0.0000 - 0.0500
Drill bit size wire#69
Drill point angle degrees118
Flute by diameter ratio17xD
Flute length in1/2
Flute typeSpiral
Maximum drilling depth in1/2
Number of flats0
Number of flutes2
Overall length in1-3/8in
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Shank diameter0.0292
Shank length in7/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
