3/16" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998176

Precision Twist Drill

3/16" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998176

MFR# 5998176Series R10CO-R15CO-R18CO

$4.52List $5.80 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/16
Flutes2
CoatingStraw

Description

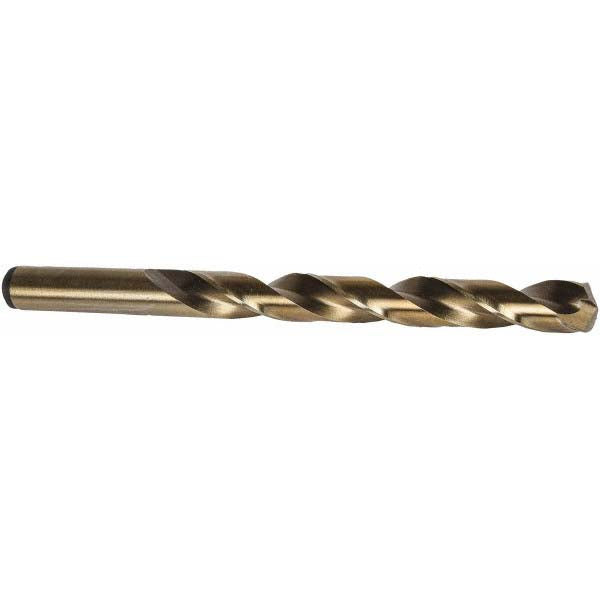

The Precision Twist Drill 5998176 is a 3/16" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-5/16 flute length, 3-1/2 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in3/16
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute by diameter ratio12xD
Flute length in2-5/16
Flute typeRegular Spiral
Maximum drilling depth in2-5/16
Number of flats0
Number of flutes2
Overall length in3-1/2
Point typeStandard
Primary workpiece materialSteel
Shank diameter in3/16
Shank length in1-3/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
