5/16" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998209

Precision Twist Drill

5/16" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998209

MFR# 5998209Series R10CO-R15CO-R18CO

$10.42List $13.36 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2
CoatingStraw

Description

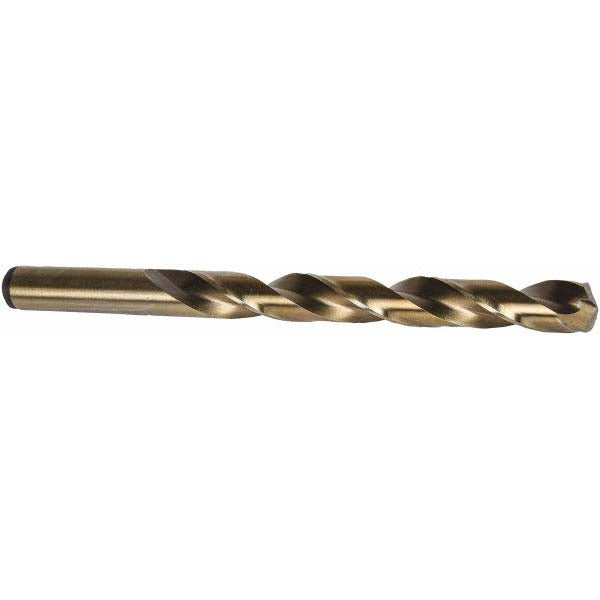

The Precision Twist Drill 5998209 is a 5/16" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-3/16 flute length, 4-1/2 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in3-3/16
Flute typeRegular Spiral
Maximum drilling depth in3-3/16
Number of flats0
Number of flutes2
Overall length in4-1/2
Point typeStandard
Primary workpiece materialSteel
Shank diameter in5/16
Shank length in1-5/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
