5/32" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998211

Precision Twist Drill

5/32" Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5998211

MFR# 5998211Series R10CO-R15CO-R18CO

$3.84List $4.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/32
Flutes2
CoatingStraw

Description

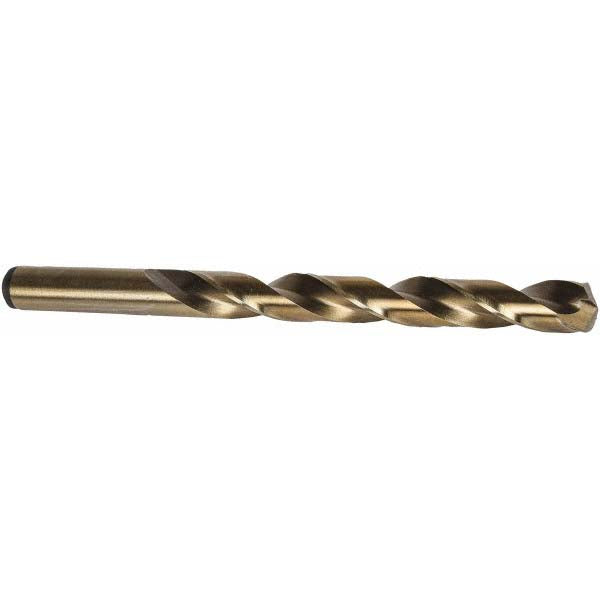

The Precision Twist Drill 5998211 is a 5/32" Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2 flute length, 3-1/8 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size in5/32
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Flute by diameter ratio13xD
Flute length in2
Flute typeRegular Spiral
Maximum drilling depth in2
Number of flats0
Number of flutes2
Overall length in3-1/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter in5/32
Shank length in1-1/8
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
