Precision Twist Drill

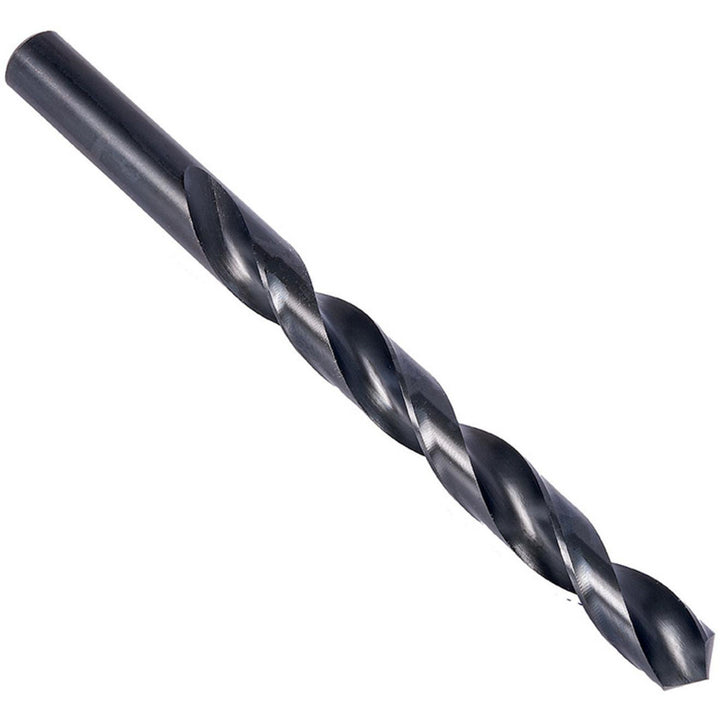

#14 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5998302
MFR# 5998302Series R10-R15-R18
$2.73List $3.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingSteam Oxide
Description
The Precision Twist Drill 5998302 is a #14 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-3/16 flute length, 3-3/8in overall length. Series R10-R15-R18.
Specifications
Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.1820
Drill bit size range0.1500 - 0.2000
Drill bit size wire#14
Drill point angle degrees118
Flute by diameter ratio12xD
Flute length in2-3/16
Flute typeSpiral
Maximum drilling depth in2-3/16
Number of flats0
Number of flutes2
Overall length in3-3/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.1820
Shank length in1-3/16
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
