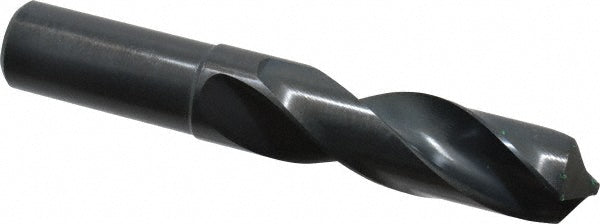

1-1/16" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Precision Twist Drill 5998505

Precision Twist Drill

1-1/16" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Precision Twist Drill 5998505

MFR# 5998505Series R40

$97.68List $125.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1-1/16
CoatingCoated

Description

The Precision Twist Drill 5998505 is a 1-1/16" High Speed Steel Screw Machine drill bit with a Coated finish, 118° point. Suited for titanium. 4 flute length, 6-1/4 overall length. Series R40.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in1-1/16
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in4
Flute typeSpiral
Overall length in6-1/4
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
