Precision Twist Drill

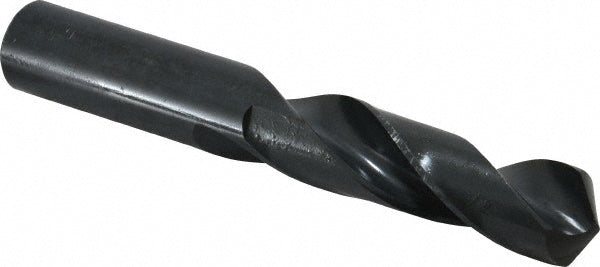

51/64" High Speed Steel Screw Machine Drill Bit, Coated, 118° point - Precision Twist Drill 5998541
MFR# 5998541Series R40
$56.84List $72.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size51/64
CoatingCoated
Description
The Precision Twist Drill 5998541 is a 51/64" High Speed Steel Screw Machine drill bit with a Coated finish, 118° point. Suited for titanium. 3-3/8 flute length, 5-1/4 overall length. Series R40.
Specifications
Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size in51/64
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in3-3/8
Flute typeSpiral
Overall length in5-1/4
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
