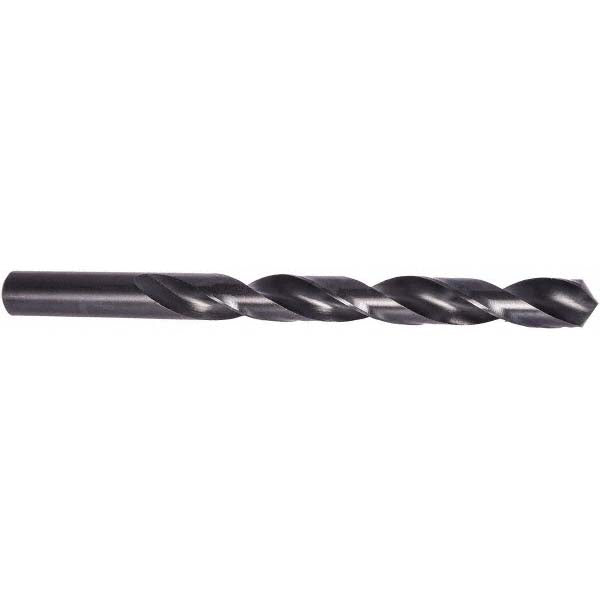

27/64" High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5998714

Precision Twist Drill

27/64" High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5998714

MFR# 5998714Series R10-R15-R18

$11.20List $14.12 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size27/64
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5998714 is a 27/64" High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 3-15/16 flute length, 5-3/8in overall length. Series R10-R15-R18.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size in27/64
Drill bit size range0.4000 - 0.5000
Drill point angle degrees118
Flute by diameter ratio9xD
Flute length in3-15/16
Flute typeSpiral
Maximum drilling depth in3-15/16
Number of flats0
Number of flutes2
Overall length in5-3/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in27/64in
Shank length in1-7/16in
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
