Precision Twist Drill
#1 High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998771
MFR# 5998771Series R41
$3.20List $4.10
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

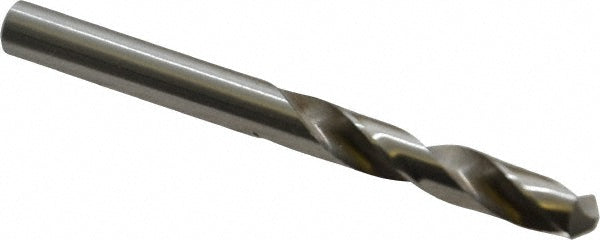

The Precision Twist Drill 5998771 is a #1 High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 1-5/16 flute length, 2-7/16 overall length. Series R41.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.2280
Drill bit size range0.2000 to 0.2500
Drill bit size wire#1
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in1-5/16
Flute typeSpiral
Overall length in2-7/16
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
