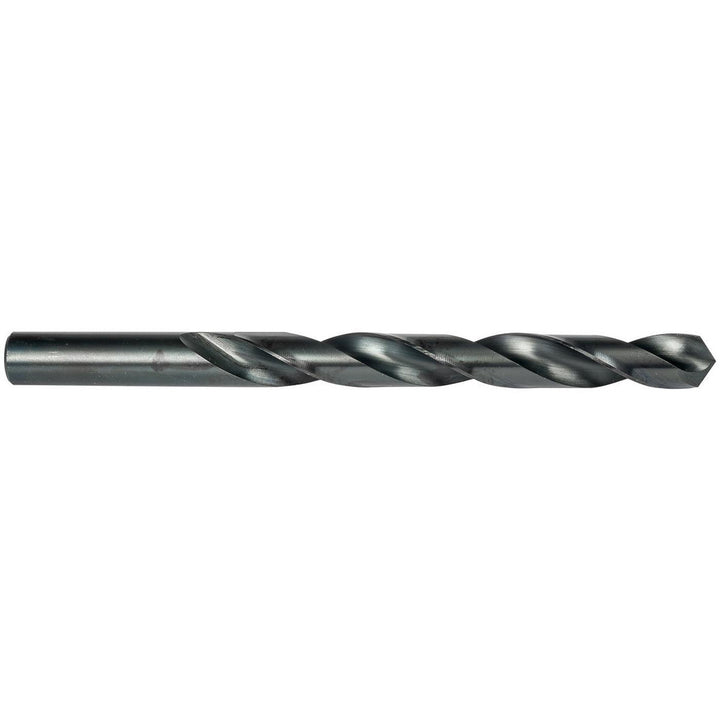

9/32" High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5998777

Precision Twist Drill

9/32" High Speed Steel Drill Bit, Steam Oxide, 135° point - Precision Twist Drill 5998777

MFR# 5998777Series R10B-R15B-R18B

$7.15List $9.01 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/32
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5998777 is a 9/32" High Speed Steel drill bit with a Steam Oxide finish, 135° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 2-15/16 flute length, 4-1/4in overall length. Series R10B-R15B-R18B.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialHigh Speed Steel
Drill bit size in9/32
Drill bit size letterK
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in2-15/16
Flute typeSpiral
Maximum drilling depth in2-15/16
Number of flats0
Number of flutes2
Overall length in4-1/4in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in9/32in
Shank length in1-5/16
Shank typeStraight-Cylindrical
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
