Precision Twist Drill

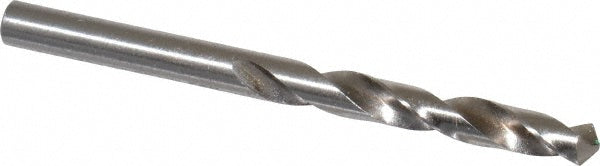

#17 High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998807
MFR# 5998807Series R41
$2.50List $3.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 5998807 is a #17 High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 1-1/8 flute length, 2-3/16 overall length. Series R41.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.1730
Drill bit size range0.1500 to 0.2000
Drill bit size wire#17
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in1-1/8
Flute typeSpiral
Overall length in2-3/16
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
