Precision Twist Drill

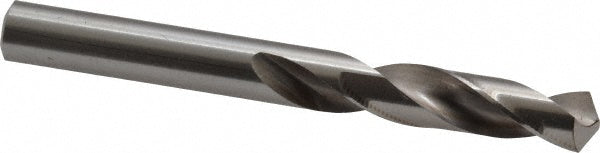

Letter P High Speed Steel Screw Machine Drill Bit, 118° point - Precision Twist Drill 5998951
MFR# 5998951Series R42
$6.34List $8.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Precision Twist Drill 5998951 is a Letter P High Speed Steel Screw Machine drill bit, 118° point. Suited for titanium. 1-11/16 flute length, 2-15/16 overall length. Series R42.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeGeneral Purpose
Drill bit size0.3230
Drill bit size letterP
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle118
Flute by diameter ratio2.5xD
Flute length in1-11/16
Flute typeSpiral
Overall length in2-15/16
Point typeStandard
Primary workpiece materialTitanium
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool materialHigh Speed Steel
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
