Letter L Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999036

Precision Twist Drill

Letter L Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999036

MFR# 5999036Series R10CO-R15CO-R18CO

$10.89List $13.97 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingStraw

Description

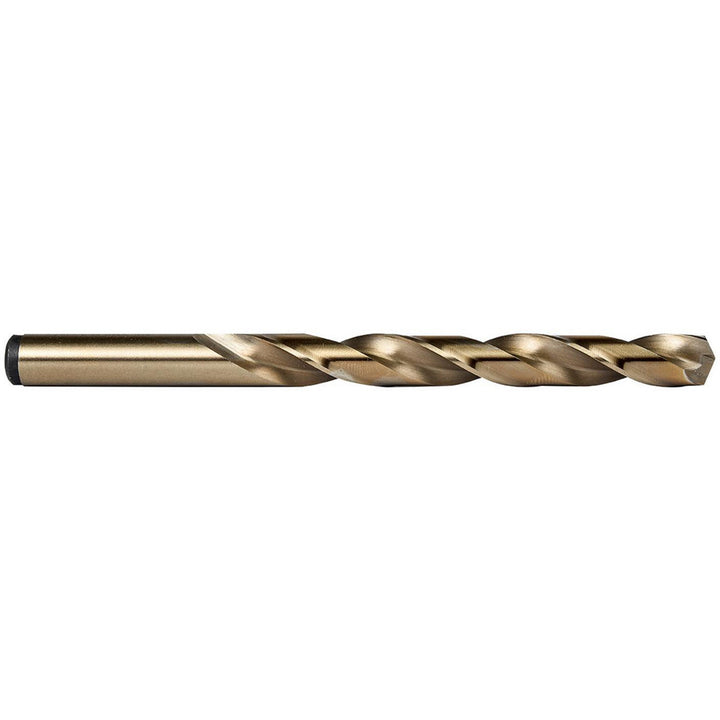

The Precision Twist Drill 5999036 is a Letter L Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 2-15/16 flute length, 4-1/4 overall length. Series R10CO-R15CO-R18CO.

Specifications

Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.2900
Drill bit size letterL
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Flute by diameter ratio10xD
Flute length in2-15/16
Flute typeRegular Spiral
Maximum drilling depth in2-15/16
Number of flats0
Number of flutes2
Overall length in4-1/4
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.2900
Shank length in1-5/16
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
