Precision Twist Drill

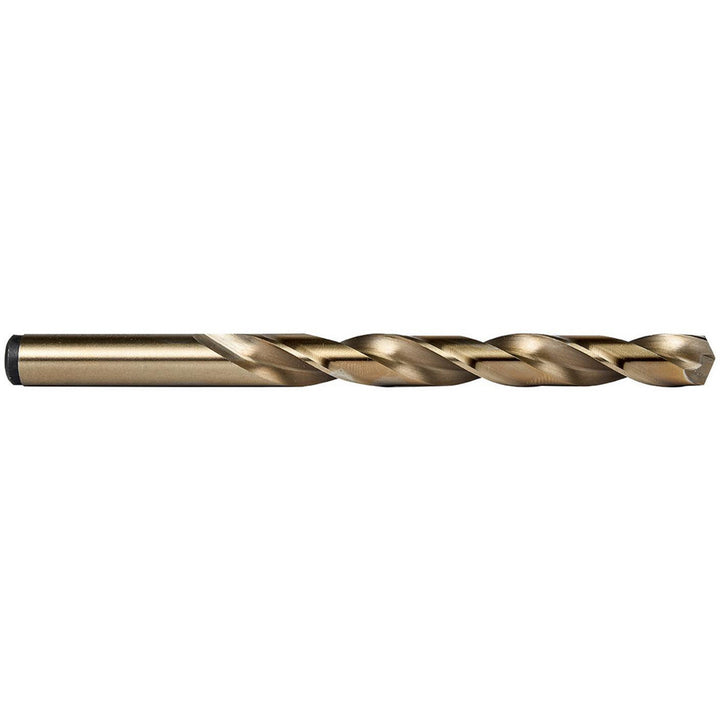

Letter X Cobalt Drill Bit, Straw, 135° point - Precision Twist Drill 5999081
MFR# 5999081Series R10CO-R15CO-R18CO
$20.38List $25.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingStraw
Description
The Precision Twist Drill 5999081 is a Letter X Cobalt drill bit with a Straw finish, 135° point. Suited for steel. 3-3/4 flute length, 5-1/8 overall length. Series R10CO-R15CO-R18CO.
Specifications
Coating finishStraw
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeHeavy Duty
Drill bit materialCobalt
Drill bit size0.3970
Drill bit size letterX
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Flute by diameter ratio9xD
Flute length in3-3/4
Flute typeRegular Spiral
Maximum drilling depth in3-3/4
Number of flats0
Number of flutes2
Overall length in5-1/8
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.3970
Shank length in1-3/8
Shank typeStraight
Specification designationNAS
Specification numberNAS 907
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
