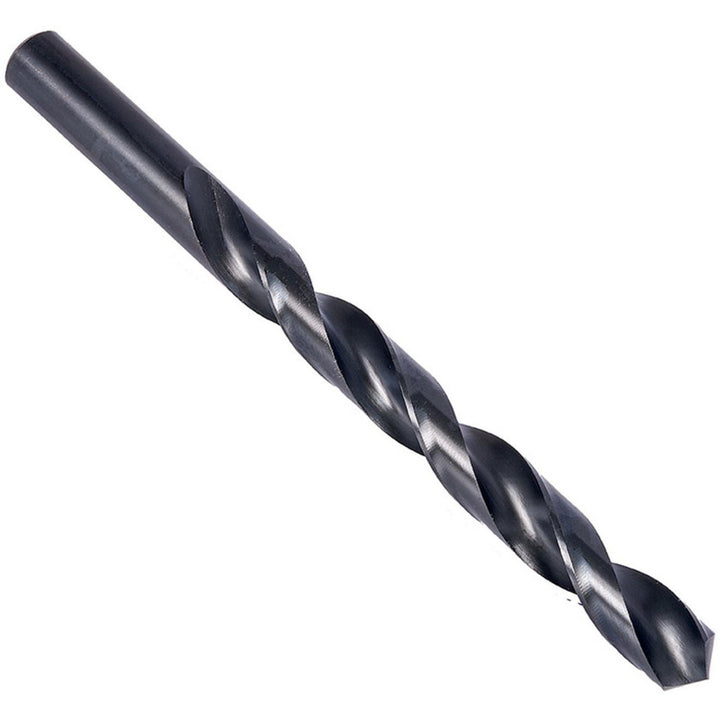

#62 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999147

Precision Twist Drill

#62 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999147

MFR# 5999147Series R10-R15-R18

$1.94List $2.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5999147 is a #62 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 5/8 flute length, 1-1/2in overall length. Series R10-R15-R18.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0380
Drill bit size range0.0000 - 0.0500
Drill bit size wire#62
Drill point angle degrees118
Flute by diameter ratio16xD
Flute length in5/8
Flute typeSpiral
Maximum drilling depth in5/8
Number of flats0
Number of flutes2
Overall length in1-1/2in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0380
Shank length in7/8
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
