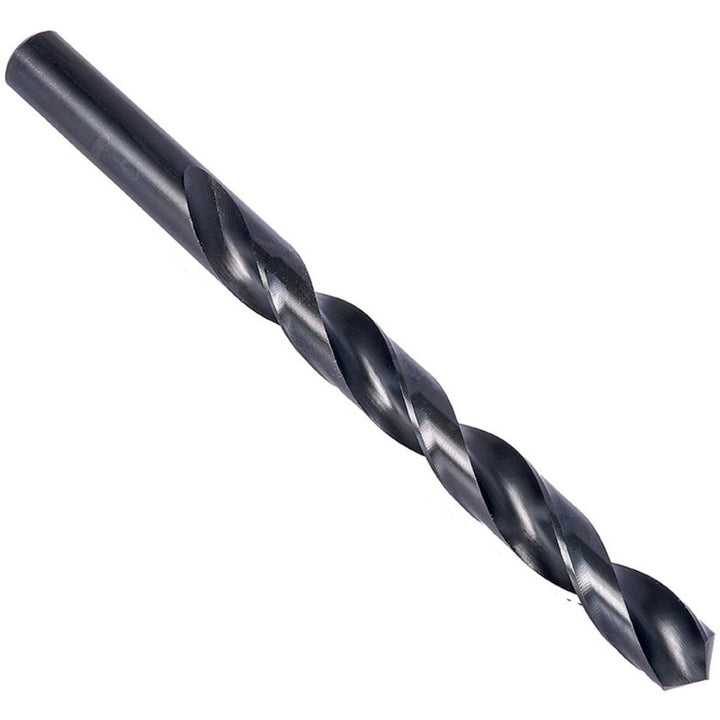

#55 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999251

Precision Twist Drill

#55 High Speed Steel Drill Bit, Steam Oxide, 118° point - Precision Twist Drill 5999251

MFR# 5999251Series R10-R15-R18

$2.06List $2.59 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingSteam Oxide

Description

The Precision Twist Drill 5999251 is a #55 High Speed Steel drill bit with a Steam Oxide finish, 118° point. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material. 7/8 flute length, 1-7/8in overall length. Series R10-R15-R18.

Specifications

Coating finishSteam Oxide
Coolant throughNo
Cutting directionRight Hand
Double marginNo
Drill bit gradeGeneral Purpose
Drill bit materialHigh Speed Steel
Drill bit size0.0520
Drill bit size range0.0500 - 0.1000
Drill bit size wire#55
Drill point angle degrees118
Flute by diameter ratio17xD
Flute length in7/8
Flute typeSpiral
Maximum drilling depth in7/8
Number of flats0
Number of flutes2
Overall length in1-7/8in
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter0.0520
Shank length in1
Shank typeStraight-Cylindrical
Specification designationANSI
Spiral typeRegular
StandardsANSI
Tool applicationDrilling
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
